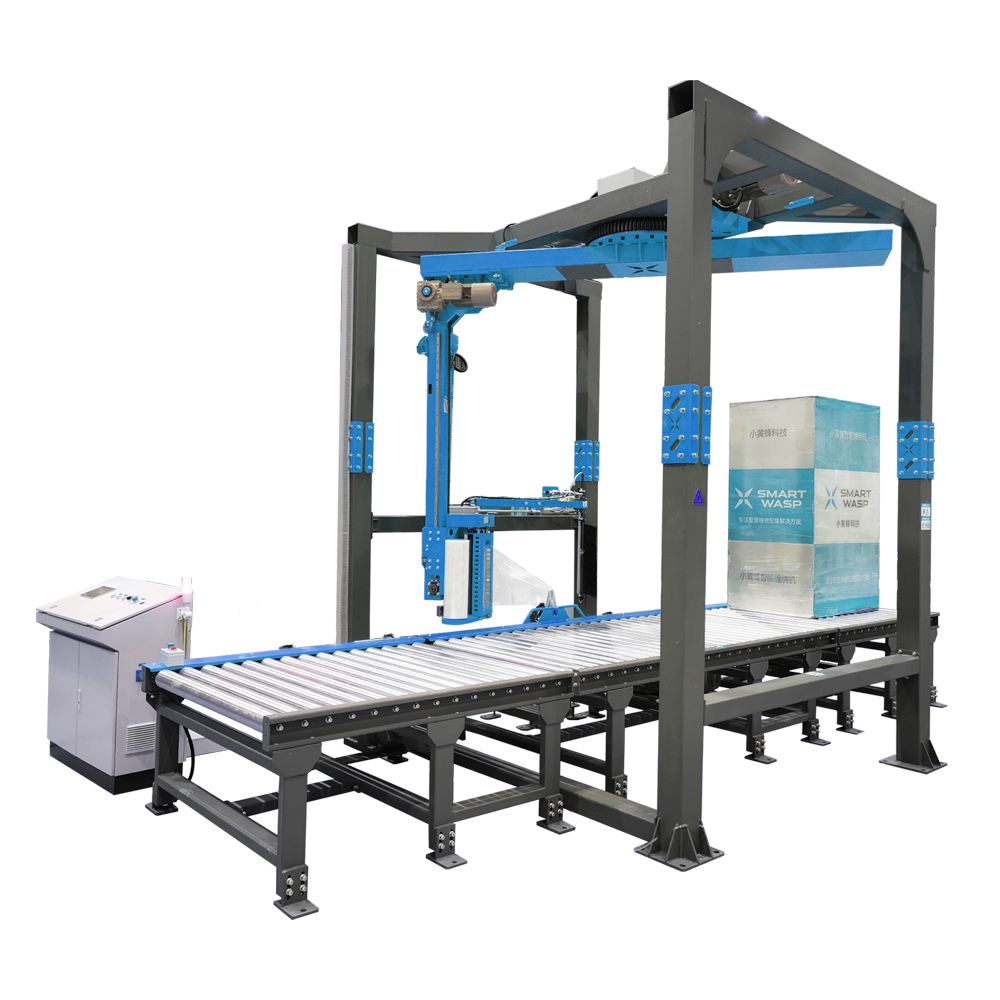

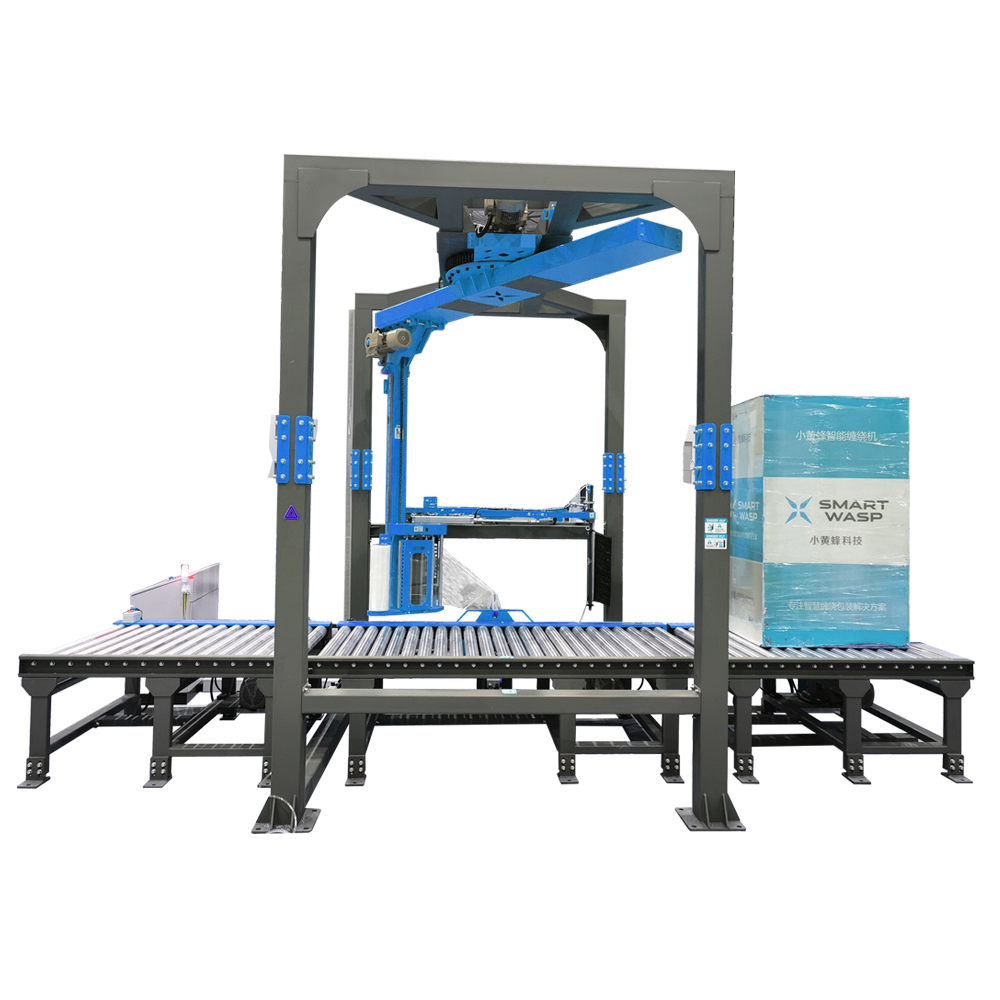

T1000 Rotary Arm Fully Automatic Pallet Wrapping Machine

High Efficiency
High Efficiency

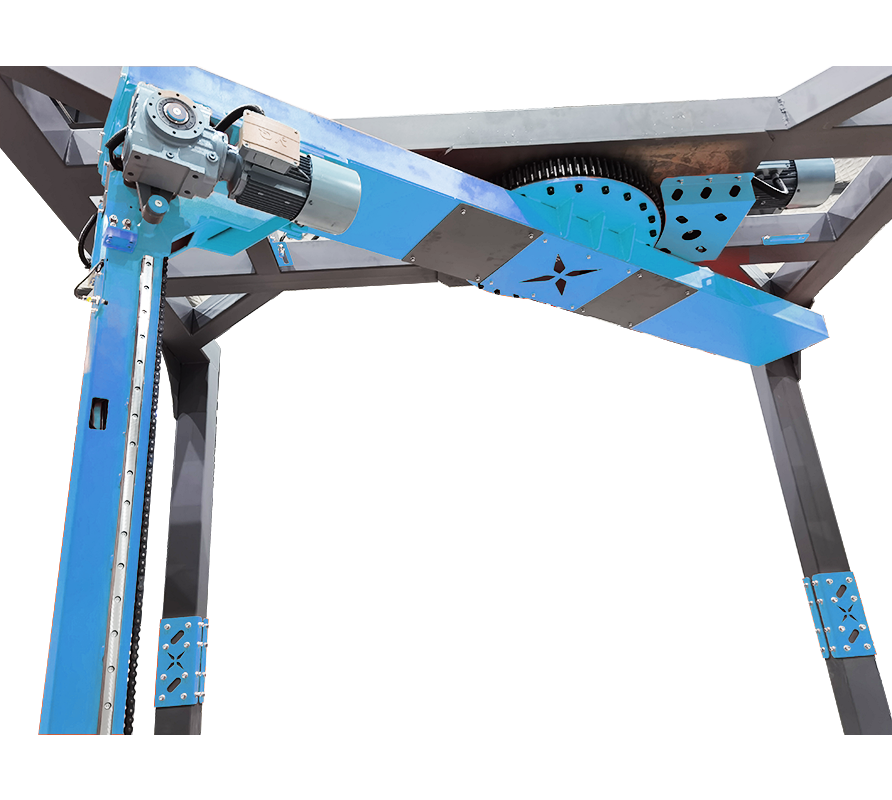

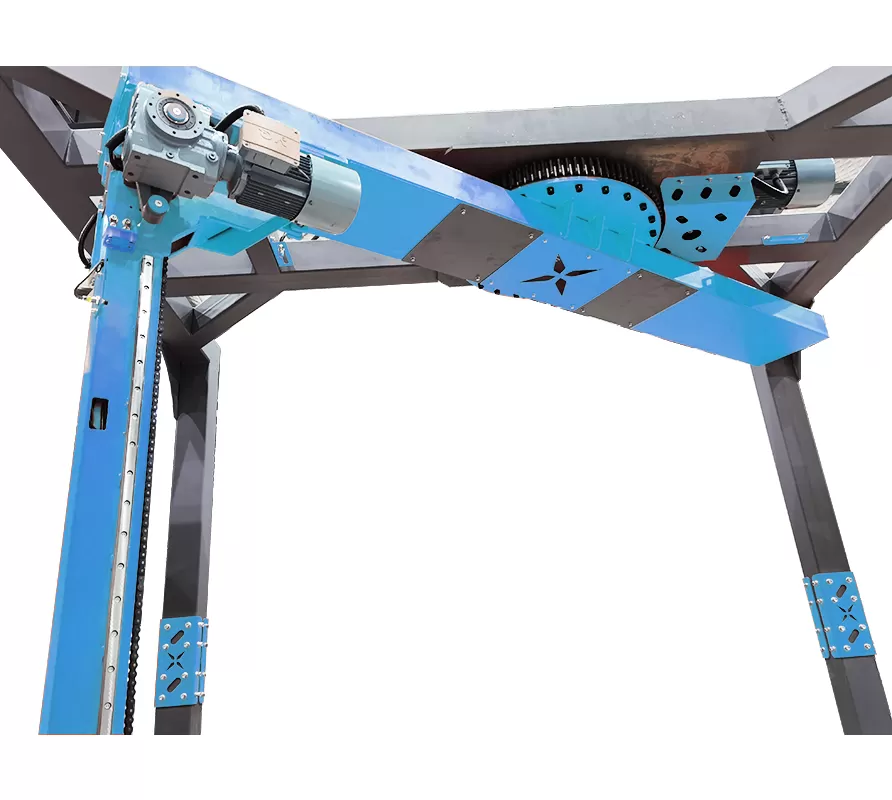

    Transmission: slewing bearing.
    35-40 loads each hour.
    Noiseless, long service life, maintenance-free, no need to add additional counterweight.

More Powerful
More Powerful

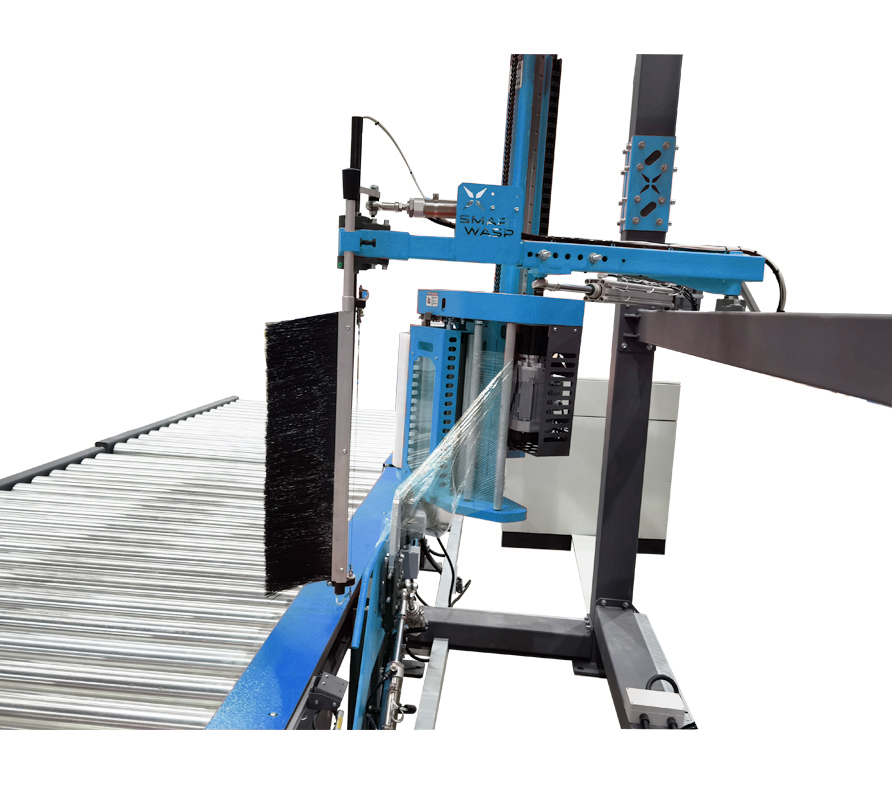

    Mechanical filming way

    100% film-clamping effect

    Cylinder film-cutting


Save Cost

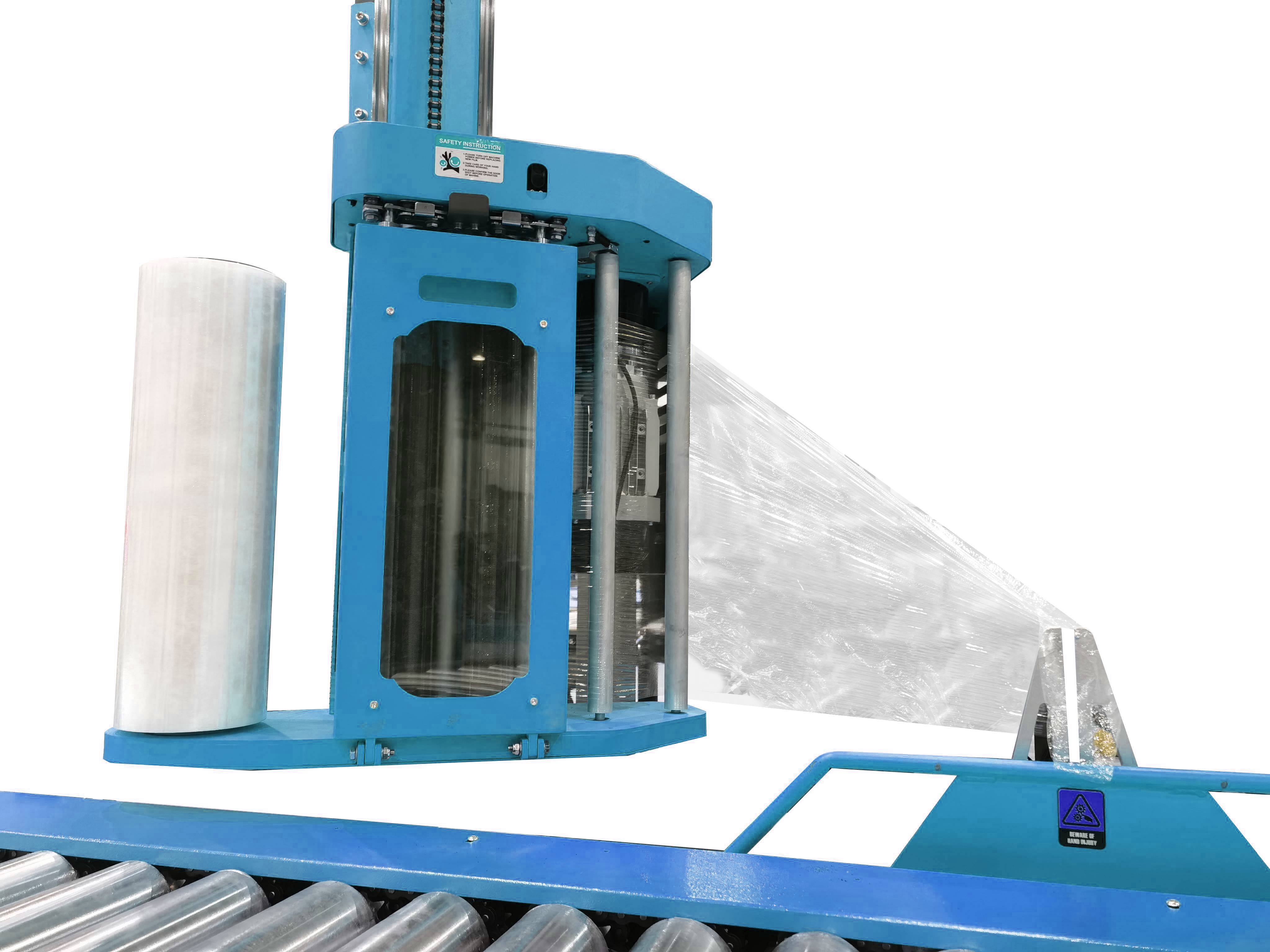

    Maximum up to 400% pre-stretch rate
    Minimum the value of each meter of stretch film
    Standard constant releasing film
    Fixed-pointed wrapping quantitative use film

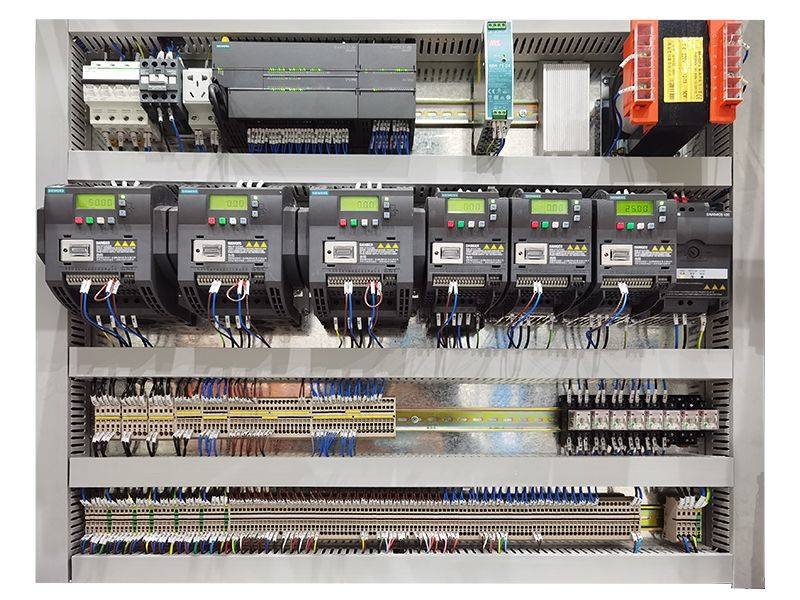

Better spare parts

    SICK proximity switch, photoelectric sensor

    Weidmuller terminal board

    SIEMENS PLC

    SIEMENS Inverters

ModelT1000Spare PartsBrand
Maximum wrapping speed35-40 loads/hour InverterSIEMENS
Max pallet size 1.2x1.2mPosition sensorSICK
Maximum Wrapping Height2000mmPLCSIEMENS
Ring Speed0-30RPM(Adjustable)Travel SwitchOMRON
Ring Size 2000mmRing drive MotorJSK
Ring Drive Power1.5PHRelayOMRON
Film &Clamp Cut Automatic (Heat type)Touch screenSIEMENS
Standard Film Width500mmSwitchSchneider
Constant Film Delivery ForceStandardCylinderAIRTAC
Standard Pre-Stretch250%Up and down motorJSK
Film CapacityDiameter: 250mm

Top pressure functionOptional

Lifting  up conveyorOptionalSpecial ProcessIntroduction
Top sheet dispenser OptionalFrameSteel
Paper corner fixerOptionalPrintingMetallic Paint
Machine Size3825*2900*3940mmCuttingLaser
Machine weight2000KG

Voltage380V/60HZ


Frequently Asked Questions (FAQ) About Rotary Arm Fully Automatic Pallet Wrapping Machine


1. What is a Rotary Arm Fully Automatic Pallet Wrapping Machine?

The Rotary Arm Fully Automatic Pallet Wrapping Machine is an advanced packaging solution designed to wrap pallets with stretch film efficiently and consistently. The rotary arm design allows the film to wrap around the stationary pallet, making it ideal for heavy, unstable, or lightweight loads.


2. How does the Rotary Arm Wrapping Machine work?

The machine features a rotating arm that moves around the stationary pallet, wrapping it with stretch film. It is fully automatic, meaning it can start, wrap, and cut the film without manual intervention. The process ensures uniform and secure wrapping, protecting the goods during transportation and storage.


3. What are the key benefits of using this machine?

● Efficiency: Automates the wrapping process, saving time and labor costs.

● Consistency: Delivers uniform wrapping, enhancing load stability.

● Versatility: Suitable for various load sizes and types.

● Safety: Reduces the risk of workplace injuries associated with manual wrapping.

● Cost Savings: Minimizes film waste with precise wrapping.


4. What types of products can be wrapped using this machine?

The Rotary Arm Fully Automatic Pallet Wrapping Machine is suitable for a wide range of products, including boxes, bags, containers, and irregularly shaped items. It is particularly effective for heavy, lightweight, or unstable loads.


5. Is the machine compatible with different pallet sizes?

Yes, the machine is designed to accommodate various pallet sizes. Adjustable settings allow for customization to fit different dimensions and ensure optimal wrapping for each load.


6. How do I maintain the Rotary Arm Fully Automatic Pallet Wrapping Machine?

Regular maintenance includes:

● Cleaning: Keep the machine free of dust and debris.

● Lubrication: Regularly lubricate moving parts.

● Inspection: Periodically check for wear and tear on components.

● Film Roll Replacement: Ensure the film roll is correctly loaded and replaced as needed.


We provide detailed maintenance guidelines and support to ensure the longevity and optimal performance of your machine.


7. What safety features are included?

The machine is equipped with several safety features, such as:

● Emergency Stop Button: Instantly halts operation in case of an emergency.

● Safety Sensors: Detect obstacles and prevent accidents.

● Automatic Film Cutting: Reduces the need for manual intervention, lowering the risk of injuries.


8. Can the machine be integrated with existing production lines?

Yes, the Rotary Arm Fully Automatic Pallet Wrapping Machine is designed for seamless integration with existing production and packaging lines. It can be customized and configured to match your operational requirements.


9. What support and training does Smart Wasp offer?

Smart Wasp provides comprehensive support, including:

● Installation and Setup: Professional installation and setup services.

● Training: On-site or remote training sessions for your staff.

● Technical Support: Ongoing technical support and troubleshooting assistance.

● Maintenance Services: Scheduled maintenance and repair services to keep your machine running smoothly.




Warehouses and Distribution Centers: Ideal for companies that handle large quantities of palletized goods and require high-speed wrapping.


Manufacturing: Especially useful in industries like food processing, pharmaceuticals, and chemicals, where products need to be wrapped securely for transport or storage.


E-commerce and Retail: For businesses that need to ship large volumes of products efficiently and securely.


Logistics and Freight: Rotary arm machines are excellent for industries that require consistent and stable pallet wrapping for shipping or long-term storage.
