Length: 250-600mm Width: 150-500mm Height: 150-500mm
NON SIEMENS PLC control (economical model)
Suitable for production size, no need to exchange signal
Length:250-600mm Width: 150-500mm Height:150-500mm

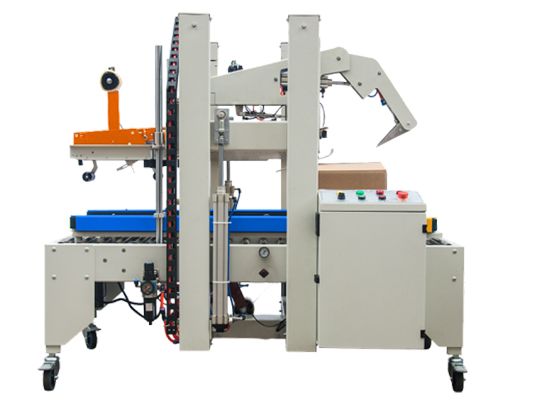

Automatic Flaps fold
Automatic Adjust size
Speed: 6-8ctn/min
Suitable for automatic production line with random size box

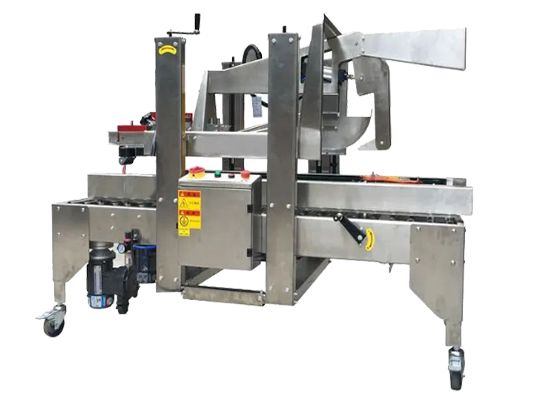

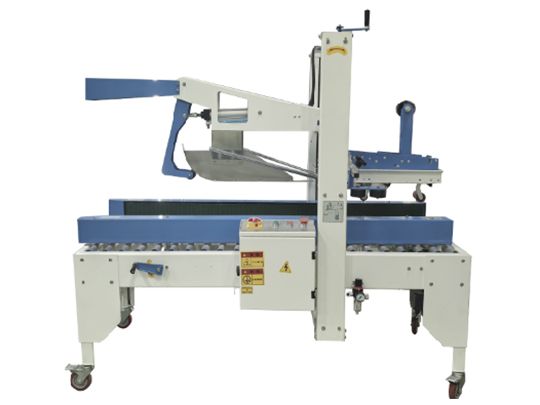

Carton Sealing Machine MC-06Pro (stainless steel)
MC-06Pro(Stainless steel) with stainless steel 304 standard frame. It's suitable for humid environment, widely used in food industry.
| TECHNICAL DATA | STANDARD FEATURES | ||||||||||
| Performance: | Cylinder | AIRTAC | |||||||||
| Throughput Speed | 20M/Minute | Electromagnetic Valve | AIRTAC | ||||||||
| Case Size (Outside Dimensions) | L:200-600mm W:150-500mm H:150-500mm | Motor | CPG | ||||||||
| Sensor | OMRON | ||||||||||
| Operation | Air Flitter Valve | AIRTAC | |||||||||
| fold flaps | Automatic | Tape Cutter | SKD11（Japan） | ||||||||
| adjust size | Manual (MC-06FA model “AUTO”) | Motor Protector | Schneider | ||||||||
| Top & Bottom Seal | Electric Switch | Schneider | |||||||||
| Tape | 48-72mm | PLC control | SIEMENS | ||||||||
| Machine Head | 3inch (2inch optional) | ||||||||||
| Service Requirements | Certification | CE | |||||||||
| Air Supply | 6 Bar & 50NL/min | Machine Warranty | 1 year | ||||||||
| Power | 400W | ||||||||||
| Voltage | 110/220V, 1ph, 50/60Hz | ||||||||||
| Machine Data | Optional | ||||||||||
| Weight | 240KG | Top & Bottom seal | Hot glue | ||||||||
| Dimensions | 1785*916*1650mm（L*W*H） | Safety door system | with safety sensor | ||||||||
| Outfeed Pass Height | 600 mm +/- 150 mm | Output conveyor | custom made conveyor | ||||||||

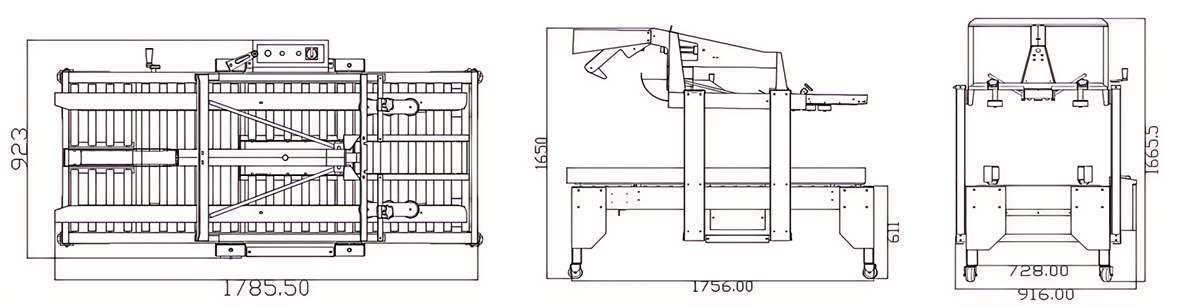

Engineer Drawing
MC-06 Pro FEATURE

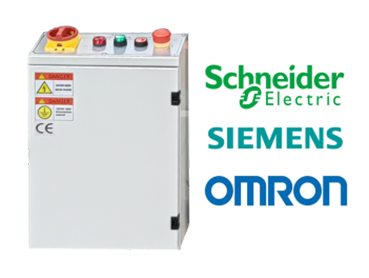

| Dual Support Frame | Independent Electric Box | Safe & Intelligent Function |
 |  |  |

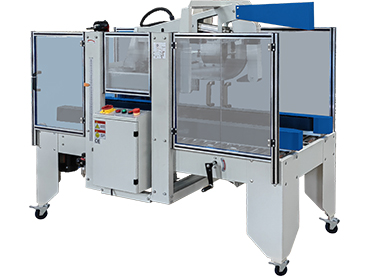

The machine will remain in good condition in a few years to ensure that the flaps folding function and the tape sealing function are intact. | 1. SIEMENS PLC control 2. Motor protective relay 3. Easy Signal Exchange by I/O | 1. Pre-caution for Tape used up 2. Safety Door System（optional） 3. Belt On/Off by photosensor |

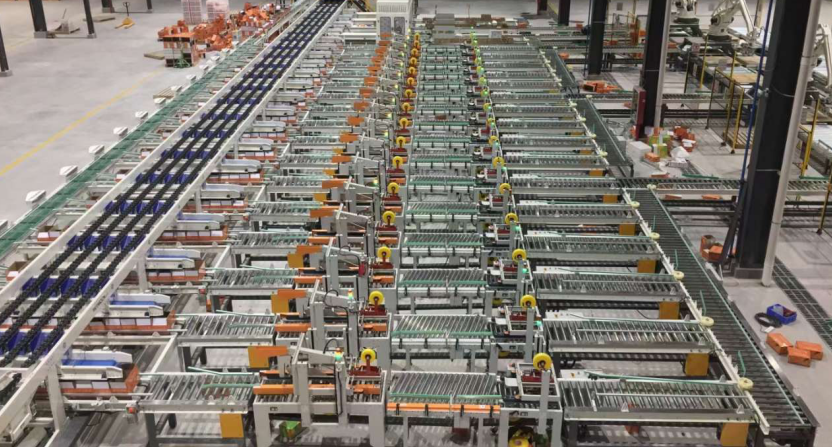

MC-06 Main For Automatic Packing Line
China Carton Sealing Machine Applications
Carton Sealing Machines are widely used across various industries for efficient packaging and sealing of boxes. Common applications include:
● Manufacturing and Assembly Lines: For packaging finished products in boxes for shipping.
● E-commerce: Rapid sealing of cartons for online orders.
● Logistics and Warehousing: Securing boxes for transportation and storage.
● Food and Beverage Industry: Sealing cartons containing packaged food, beverages, or bottled goods.
● Pharmaceutical Industry: Sealing medical supplies and pharmaceutical products in tamper-evident packaging.
● Retail Distribution: Packing and sealing consumer goods for shipment to stores or customers.
These carton-sealing machines streamline operations, ensuring fast and consistent box sealing.
