Corner Sealing Automatic Carton Sealing Machine

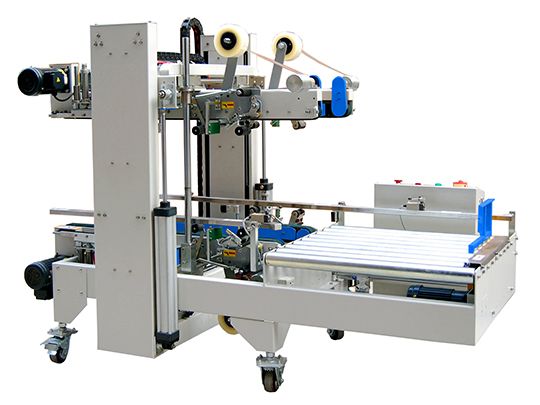

MC-07 Corner Sealing Automatic Carton Sealing Machine

Automatic Carton Sealing Machine

MC-07 automatically attaches the tape to the 4 corners of the box. It can work normally with MC-05 or MC-06Pro to achieve H-type seal, which is suitable for the case that the product in the box has been pressurized and has external tension.

The Corner Sealing Automatic Carton Sealing Machine is designed to efficiently seal the corners of corrugated boxes, ensuring maximum protection for the contents inside. This type of machine is used after the main top and bottom sealing has been completed, providing an extra layer of security by sealing the four corners of the carton with adhesive tape.

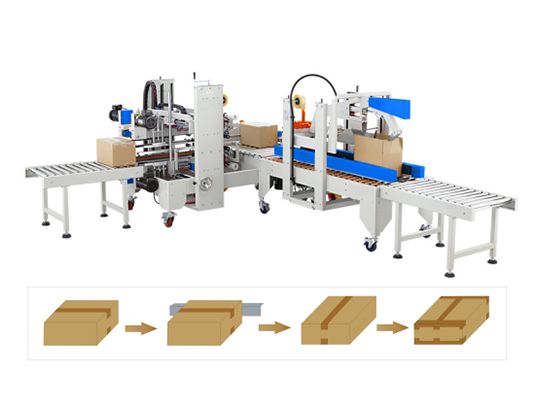

H type sealing: MC-06Pro + MC07

Sealing top & bottom + sealing 4 corner side

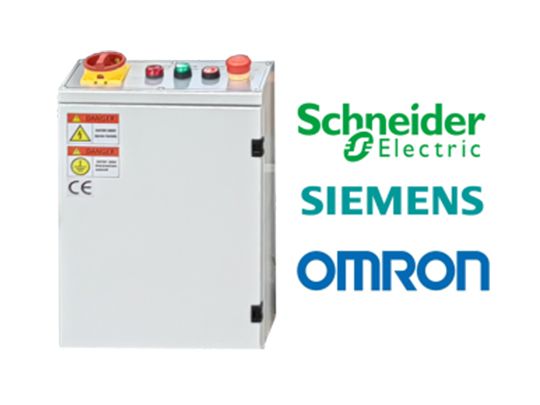

Independent Electric Box

1.SIEMENS PLC control

2.Motor protective relay

3.Easy Signal Exchange by I/O

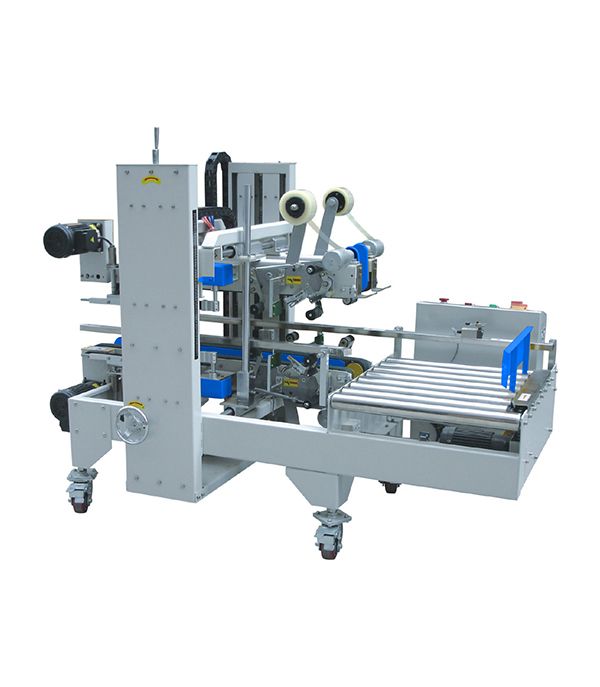

Random size optional MC-07FA

Automatic Adjust size

Speed: 5-6ctn/min

Suitable for automatic production line with random size box

TECHNICAL DATA		STANDARD FEATURES
Performance:		Cylinder	AIRTAC
Throughput Speed	8-10 box /Minute	Electromagnetic Valve	AIRTAC
Case Size (Outside Dimensions)	L:320-500mm W:200-500mm H:180-500mm	Motor	CPG
		Sensor	OMRON
Operation		Air Flitter Valve	AIRTAC
adjust size	Manual (MC-07FA model “AUTO”)	Tape Cutter	SKD11（Japan）
		Motor Protector	Schneider
Top & Bottom Seal		Electric Switch	Schneider
Tape	48-72mm	PLC control	SIEMENS
Machine Head	3inch (2inch optional)
Service Requirements		Certification	CE
Air Supply	6 Bar & 200NL/min	Machine Warranty	1 year
Power	1050W
Voltage	110/220V, 1ph, 50/60Hz
Machine Data		Optional
Weight	500KG	Safety door system	with safety sensor
Dimensions	199812241444mm（LWH）	Output conveyor	custom made conveyor
Outfeed Pass Height	600 mm +/- 150 mm	Machine Layout	Straight infeed & Straight output

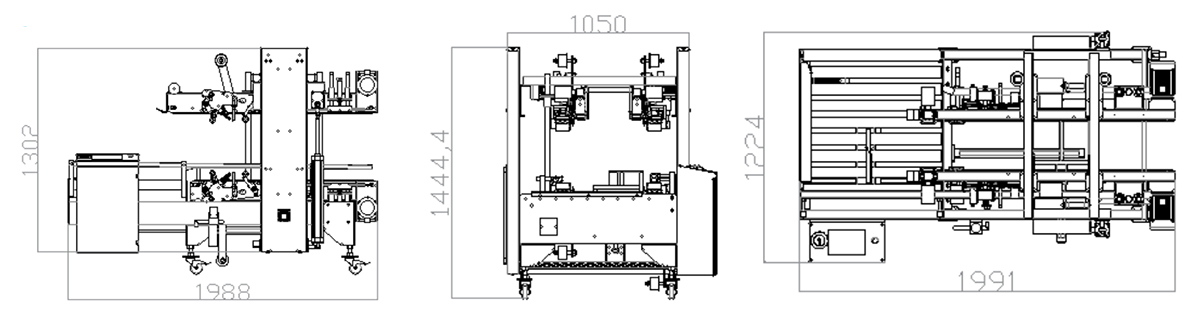

Engineer Drawing

MC-07 Corner Sealing
